Problem 139: Pythagorean tiles
(see projecteuler.net/problem=139)
Let (a, b, c) represent the three sides of a right angle triangle with integral length sides.

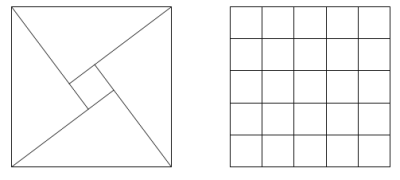

It is possible to place four such triangles together to form a square with length c.
For example, (3, 4, 5) triangles can be placed together to form a 5 by 5 square with a 1 by 1 hole in the middle
and it can be seen that the 5 by 5 square can be tiled with twenty-five 1 by 1 squares.
However, if (5, 12, 13) triangles were used then the hole would measure 7 by 7 and these could not be used to tile the 13 by 13 square.
Given that the perimeter of the right triangle is less than one-hundred million, how many Pythagorean triangles would allow such a tiling to take place?
My Algorithm
The sides of each triangle are a <= b < c.
In this picture shown above, c is the length of the "outer square" and b - a is the length of the "hole".
A tiling exists only if c is a multiple of b - a, that means c % (b - a) == 0
.
For the (3,4,5) triangle: c mod (b-a) = 5 mod (4-3) = 5 mod 1 = 0 → yes, tiling exists
For the (5,12,13) triangle: c mod (b-a) = 13 mod (12-5) = 13 mod 7 = 6 → no
I generate all basic Pythagorean triplets (see problem 75) and check if c % (b - a) == 0
.
Then all multiples create a valid tiling, too: k * c mod (k * b - k * a) = k * c mod k * (b - a) = k * (c mod (b - a)) and if x mod y = 0 then always kx mod y = 0.
There are \lfloor dfrac{10^8}{a+b+c} \rfloor valid multiples for each basic triplets.
Note
There is a subtle problem with the way basic triplets are generated: a and b are not always a <= b ... sometimes a > b.
So actually the correct test for a valid tiling is c % abs(b - a) == 0
(that's what my diff
variable is for).
When I looked at the valid basic triplets then I saw that b - a = 1 in all cases. There are actually only 10 basic triplets.
Interactive test
You can submit your own input to my program and it will be instantly processed at my server:
This is equivalent toecho "1 12" | ./139
Output:
Note: the original problem's input 100000000
cannot be entered
because just copying results is a soft skill reserved for idiots.
(this interactive test is still under development, computations will be aborted after one second)
My code
… was written in C++11 and can be compiled with G++, Clang++, Visual C++. You can download it, too.
#include <iostream>
// find greatest common divisor
template <typename T>
T gcd(T a, T b)
{
while (a != 0)
{
T c = a;
a = b % a;
b = c;
}
return b;
}
int main()
{
unsigned int tests = 1;
std::cin >> tests;
while (tests--)
{
unsigned int maxLength = 100000000;
std::cin >> maxLength;
unsigned int numValid = 0;
for (unsigned int m = 2; 2*m*m < maxLength; m++)
for (unsigned int n = 1; n < m; n++)
{
// only valid m and n
if ((m + n) % 2 != 1)
continue;
if (gcd(m, n) != 1)
continue;
// compute basic triplet
auto a = m*m - n*n;
auto b = 2*m*n;
auto c = m*m + n*n;
auto sum = a + b + c;
// length of a side of the hole
unsigned int diff = b - a;
if (a > b)
diff = a - b;
// check if outer square is a multiple
if (diff > 0 && c % diff == 0)
{
// number of valid triplets derived from the current basic triplet
auto moreTriples = maxLength / sum;
numValid += moreTriples;
}
}
std::cout << numValid << std::endl;
}
return 0;
}
This solution contains 8 empty lines, 6 comments and 1 preprocessor command.
Benchmark
The correct solution to the original Project Euler problem was found in 0.8 seconds on an Intel® Core™ i7-2600K CPU @ 3.40GHz.
(compiled for x86_64 / Linux, GCC flags: -O3 -march=native -fno-exceptions -fno-rtti -std=gnu++11 -DORIGINAL
)
See here for a comparison of all solutions.
Note: interactive tests run on a weaker (=slower) computer. Some interactive tests are compiled without -DORIGINAL
.
