# Problem 313: Sliding game

In a sliding game a counter may slide horizontally or vertically into an empty space.
The objective of the game is to move the red counter from the top left corner of a grid to the bottom right corner;
the space always starts in the bottom right corner.

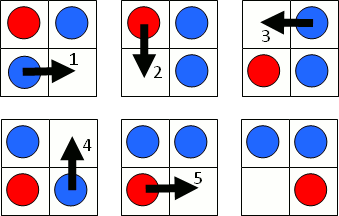

For example, the following sequence of pictures show how the game can be completed in five moves on a 2 by 2 grid. Let S(m,n) represent the minimum number of moves to complete the game on an m by n grid. For example, it can be verified that S(5,4) = 25. There are exactly 5482 grids for which S(m,n) = p^2, where p < 100 is prime.

How many grids does S(m,n) = p^2, where p < 10^6 is prime?

# My Algorithm

Wow, I needed quite some time to solve this apparently easy problem (difficulty rated at just 30% by Project Euler) ...
These three steps were taken:
1. write a simple brute-force solution for very small m and n
2. deduce a slightly smarter version for S(m,n) = p^2 where p < 100
3. find the the fast formula for p < 10^6

bruteForce() represents my first step: it's a breadth-first search that generates all "moves" of the empty square until the red counter is in its final position.
Even though a substantial amount of code is devoted to this algorithm, it is pretty straightforward and easy to implement (and I enjoyed it !).

It pretty obvious that S(m, n) = S(n, m). Therefore I assume in the following text that m >= n.

I printed the results for n <= m <= 15 and observed a pattern which lead to the faster search() (my second step):
(1) S(m, 2) = S(m-1, 2) + 6
(2) S(m, n) = S(m, n-1) + 2

There are a few exceptions: S(2, 2) = 0 and S(3, 2) = 9 and S(3, 3) = 13.
It took a few minutes to get everything right and, voila !, search() found the correct result 5482 for p < 100.

The problem asks for p < 10^6 which is 10^4 times larger - and due to the quadratic nature of my algorithm it will take about 10^8 as long. That's several days !

After a few days I revisited my partial solution and further analyzed my debugging output and again, there was a pattern:
the differences between consecutive numbers grow almost quadratic:

pp^2S_pdiff = S_p - S_{p-1}p^2 / diff
392
525424.5
7498412.5
11121181012.25
13169321412.1
17289562412.07143...
19361863012.04167...
235291304412.03333...
298412007012.02273...

The last column gets closer and closer to 12 !
I tried a few formulas in a spreadsheet and it turns out that diff = (p^2 - 1) / 12 matches all cases except for p = 3.

My final algorithm is to compute the sum of (p^2 - 1) / 12 for all primes p (except for p = 3 then it's 2).

## Note

I couldn't find an obvious mathematical approach and solved this with a combination of programming and lots of guesswork.
That's not desirable - well, I like the programming part but guessing isn't my strong suit.
Admittedly, the final algorithm is very simple and could be considered "worth" only 30% but it's not an easy way to get there.
I had to write more than 200 lines of code to "stumble upon" a one-liner solution.

# Interactive test

You can submit your own input to my program and it will be instantly processed at my server:

Input data (separated by spaces or newlines):
Note: The input value is included in the search range (unlike the formula in the problem statement).

This is equivalent to
echo 100 | ./313

Output:

Note: the original problem's input 1000000 cannot be entered
because just copying results is a soft skill reserved for idiots.

(this interactive test is still under development, computations will be aborted after one second)

# My code

… was written in C++11 and can be compiled with G++, Clang++, Visual C++. You can download it, too.

       #include <iostream>
#include <vector>
#include <set>
#include <cmath>

// ---------- standard prime sieve from my toolbox ----------

// odd prime numbers are marked as "true" in a bitvector
std::vector<bool> sieve;

// return true, if x is a prime number
bool isPrime(unsigned int x)
{
// handle even numbers
if ((x & 1) == 0)
return x == 2;

// lookup for odd numbers
return sieve[x >> 1];
}

// find all prime numbers from 2 to size
void fillSieve(unsigned int size)
{
// store only odd numbers
const unsigned int half = (size >> 1) + 1;

// allocate memory
sieve.resize(half, true);
// 1 is not a prime number
sieve = false;

// process all relevant prime factors
for (unsigned int i = 1; 2*i*i < half; i++)
// do we have a prime factor ?
if (sieve[i])
{
// mark all its multiples as false
unsigned int current = 3*i+1;
while (current < half)
{
sieve[current] = false;
current += 2*i+1;
}
}
}

// ---------- problem specific code ----------

// (0,0) is located in the upper-left corner
struct Board
{
typedef unsigned int Number;
// position of the red counter
Number redX, redY;
// empty square
Number emptyX, emptyY;

Board(Number redX_, Number redY_, Number emptyX_, Number emptyY_)
: redX(redX_), redY(redY_), emptyX(emptyX_), emptyY(emptyY_)
{}

// for std::set
bool operator<(const Board& other) const
{
if (redX   != other.redX)   return redX   < other.redX;
if (redY   != other.redY)   return redY   < other.redY;
if (emptyX != other.emptyX) return emptyX < other.emptyX;
return emptyY < other.emptyY;
}
};

unsigned int bruteForce(unsigned int width, unsigned int height)
{
// ensure width >= height
if (width < height)
std::swap(width, height);

// start with the red counter in the upper-left corner and empty square in lowe-right corner
Board initial(0,0, width-1,height-1);
std::vector<Board> todo = { initial };
std::set<Board> visited = { initial };

unsigned int depth = 0;
while (!todo.empty())
{
std::vector<Board> next;
for (auto current : todo)
{
// finished ?
if (current.redX == width - 1 && current.redY == height - 1)
return depth;

// "move" the empty square, ignore already visited positions
// right
if (current.emptyX + 1 < width)
{
Board right = current;
right.emptyX++;
// move red counter ?
if (right.emptyX == right.redX && right.emptyY == right.redY)
right.redX--;
// if unvisited yet, then add to queue for next iteration
if (visited.count(right) == 0)
{
next.push_back(right);
visited.insert(right);
}
}
// left
if (current.emptyX > 0)
{
Board left = current;
left.emptyX--;
// move red counter ?
if (left.emptyX == left.redX && left.emptyY == left.redY)
left.redX++;
// if unvisited yet, then add to queue for next iteration
if (visited.count(left) == 0)
{
next.push_back(left);
visited.insert(left);
}
}
// down
if (current.emptyY + 1 < height)
{
Board down = current;
down.emptyY++;
// move red counter ?
if (down.emptyX == down.redX && down.emptyY == down.redY)
down.redY--;
// if unvisited yet, then add to queue for next iteration
if (visited.count(down) == 0)
{
next.push_back(down);
visited.insert(down);
}
}
// up
if (current.emptyY > 0)
{
Board up = current;
up.emptyY--;
// move red counter ?
if (up.emptyX == up.redX && up.emptyY == up.redY)
up.redY++;
// if unvisited yet, then add to queue for next iteration
if (visited.count(up) == 0)
{
next.push_back(up);
visited.insert(up);
}
}
}

// next iteration
todo = std::move(next);
depth++;
}

// unsolvable grid
return 0; // never reached
}

// just a bit of pattern matching until it produced the same results as bruteForceSlow()
unsigned int search(unsigned int width, unsigned int height)
{
// ensure width >= height
if (width < height)
std::swap(width, height);

// small grids are impossible
if (width <  2)
return 0;
// precalculated results for 2x2, 3x2 and 3x3
if (width == 2)
return 5;
if (width == 3)
return height == 2 ? 9 : 13;

// result for height = 2
auto two  = 6 * width - 9;
// and adjust for arbitrary height
auto full = two + 2 * height - 4;
// two more moves required if both sides are equal
if (width == height)
full += 2;

return full;
}

int main()
{
unsigned int limit = 1000000;
std::cin >> limit;

// verify the two drawings
//std::cout << bruteForce(2, 2) << std::endl;

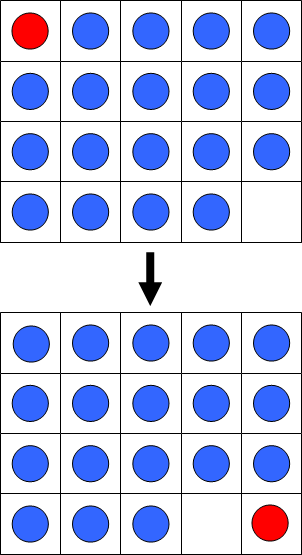

//std::cout << bruteForce(5, 4) << std::endl;

// generate enough prime numbers
fillSieve(limit);

//#define VERIFY_100
#ifdef  VERIFY_100
// use faster bruteForce() function to verify S(100)
for (unsigned int current = 2; current <= limit; current++)
{
if (!isPrime(current))
continue;

unsigned int sum = 0;

// verify the larger dataset p^2 where p is a prime and p < 100
for (unsigned int width = 2; search(width, 2) <= current*current; width++)
for (unsigned int height = 2; height <= width; height++)
{
auto steps = search(width, height);
// too large ?
if (steps > current * current)
break;

// is it a square of a prime ?
unsigned int root = sqrt(steps);
if (root * root != steps || !isPrime(root))
continue;

// found one more solution
sum++;
// symmetry: if (m,n) is a solution then (n,m) is a solution, too
if (width != height)
sum++;
}

// display result
std::cout << "S(" << current << ")=" << sum << std::endl;
}
#endif

// fast algorithm
unsigned long long sum = 0;
for (unsigned int p = 2; p <= limit; p++)
{
if (!isPrime(p))
continue;

// increment is (p^2 - 1) / 12
// need 64 bit for p^2
auto square    = (unsigned long long) p * p;
auto increment = (square - 1) / 12;
// except if p=3
if (p == 3)
sum += 2;
else
sum += increment;
}

// finally ...
std::cout << sum << std::endl;
return 0;
}


This solution contains 33 empty lines, 60 comments and 6 preprocessor commands.

# Benchmark

The correct solution to the original Project Euler problem was found in less than 0.01 seconds on an Intel® Core™ i7-2600K CPU @ 3.40GHz.
(compiled for x86_64 / Linux, GCC flags: -O3 -march=native -fno-exceptions -fno-rtti -std=gnu++11 -DORIGINAL)

See here for a comparison of all solutions.

Note: interactive tests run on a weaker (=slower) computer. Some interactive tests are compiled without -DORIGINAL.

# Changelog

September 19, 2017 submitted solution
