# Problem 173: Using up to one million tiles how many different "hollow" square laminae can be formed?

(see projecteuler.net/problem=173)

We shall define a square lamina to be a square outline with a square "hole" so that the shape possesses vertical and horizontal symmetry.

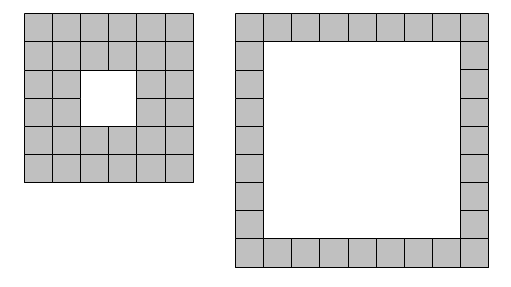

For example, using exactly thirty-two square tiles we can form two different square laminae:

With one-hundred tiles, and not necessarily using all of the tiles at one time, it is possible to form forty-one different square laminae.

Using up to one million tiles how many different square laminae can be formed?

# My Algorithm

Each tiling consists of multiple "rings". The first example has two rings, the second only one.

For each ring with side/edge length x we need 4(x-1) tiles.

My program iterates over all possible rings and tries to insert as many smaller rings as possible until one million is exceeded.

The smallest ring has an edge length of 3 tiles. A ring inside another ring has an edge length which is 2 tiles shorter.

## Modifications by HackerRank

My brute-force approach solves the original problem in less than 0.01 seconds but can't solve situations with more than 10^9 tiles in a reasonable time.

# My code

… was written in C++ and can be compiled with G++, Clang++, Visual C++. You can download it, too.

#include <iostream>
int main()
{
unsigned int limit = 1000000;
std::cin >> limit;
// result
unsigned int count = 0;
// start with smallest outer ring
for (unsigned int outer = 3; ; outer++)
{
unsigned int sum = 0;
// add as many inner rings as possible
for (unsigned int inner = outer; inner >= 3; inner -= 2)
{
// tiles needed to create one ring whose sides are "inner" tiles long
unsigned int ring = 4 * (inner - 1);
// runnng out of tiles ?
if (sum + ring > limit)
break;
// add valid ring
sum += ring;
count++;
}
// no more inner rings possible, abort
if (sum == 0)
break;
}
std::cout << count << std::endl;
return 0;
}

This solution contains 7 empty lines, 7 comments and 1 preprocessor command.

# Interactive test

You can submit your own input to my program and it will be instantly processed at my server:

This is equivalent to`echo 100 | ./173`

Output:

*Note:* the original problem's input `1000000`

__cannot__ be entered

because just copying results is a soft skill reserved for idiots.

*(this interactive test is still under development, computations will be aborted after one second)*

# Benchmark

The correct solution to the original Project Euler problem was found in less than 0.01 seconds on a Intel® Core™ i7-2600K CPU @ 3.40GHz.

(compiled for x86_64 / Linux, GCC flags: `-O3 -march=native -fno-exceptions -fno-rtti -std=c++11 -DORIGINAL`

)

See here for a comparison of all solutions.

**Note:** interactive tests run on a weaker (=slower) computer. Some interactive tests are compiled without `-DORIGINAL`

.

# Changelog

May 22, 2017 submitted solution

May 22, 2017 added comments

# Hackerrank

see https://www.hackerrank.com/contests/projecteuler/challenges/euler173

My code solves **3** out of **10** test cases (score: **22.22%**)

I failed **0** test cases due to wrong answers and **7** because of timeouts

# Difficulty

Project Euler ranks this problem at **30%** (out of 100%).

Hackerrank describes this problem as **medium**.

*Note:*

Hackerrank has strict execution time limits (typically 2 seconds for C++ code) and often a much wider input range than the original problem.

In my opinion, Hackerrank's modified problems are usually a lot harder to solve. As a rule thumb: brute-force is rarely an option.
