# Problem 161: Triominoes

A triomino is a shape consisting of three squares joined via the edges. There are two basic forms:

If all possible orientations are taken into account there are six:

Any n by m grid for which nxm is divisible by 3 can be tiled with triominoes.
If we consider tilings that can be obtained by reflection or rotation from another tiling as different

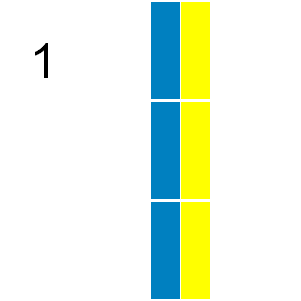

there are 41 ways a 2 by 9 grid can be tiled with triominoes:

In how many ways can a 9 by 12 grid be tiled in this way by triominoes?

# My Algorithm

I wrote a typical Dynamic Programming solution:

• the grid is filled from top to bottom
• bit masks represent whether a cell of the grid is occupied (=1) or available/empty (=0)
• search attempts to place every shape in the top-most and left-most empty cell
There are a few observations:
1. All rows are either empty, partially filled or full
2. There are at most 3 partially filled rows (due to my strict "from-top-to-bottom" algorithm)

My memoization hash therefore consists only of the number of empty rows and the bitmasks of (up to) three partially filled rows.
For the 9x12 grid, it just fits into a 32 bit integer.

The number of solutions for a grid of size n x m is identical to a grid of size m x n.
The hash is "smaller" and creates more opportunities for memoization hits when the rows are small.

## Modifications by HackerRank

The result has to be printed modulo 1000000007.

## Note

I was surprised to find only 223255 values in cache (for the 9x12 grid).
On the other side, the rotated 12x9 grid would cause over 5 million values (and run about 70x slower).
However, my std::swap optimization automatically converts the 12x9 grid to a 9x12 grid.

# Interactive test

You can submit your own input to my program and it will be instantly processed at my server:

Input data (separated by spaces or newlines):
Note: Enter width and height of the grid.

This is equivalent to
echo "2 9" | ./161

Output:

Note: the original problem's input 9 12 cannot be entered
because just copying results is a soft skill reserved for idiots.

(this interactive test is still under development, computations will be aborted after one second)

# My code

… was written in C++11 and can be compiled with G++, Clang++, Visual C++. You can download it, too.

The code contains #ifdefs to switch between the original problem and the Hackerrank version.
Enable #ifdef ORIGINAL to produce the result for the original problem (default setting for most problems).

       #include <iostream>
#include <unordered_map>

#define ORIGINAL

// grid size
unsigned int height = 9;
unsigned int width  = 2;

// indicate an empty row
const unsigned int EmptyRow = 0;

// set a certain bit to one (= position is not available anymore), return true if bit was zero
// note: second parameter is an in/out parameter
bool use(unsigned int pos, unsigned int& row)
{
unsigned int mask = 1 << pos;
bool result = (row & mask) == 0;
return result;
}

// recursive search
unsigned long long search(unsigned int rowsLeft,
unsigned int rowA, unsigned int rowB, unsigned int rowC)
{
// done ?
if (rowsLeft == 0)
return 1;

// filled another row ?
unsigned int fullRow = (1 << width) - 1;
if (rowA == fullRow)
return search(rowsLeft - 1, rowB, rowC, EmptyRow);

// find first gap in rowA
unsigned int pos = 0;
while ((rowA & (1 << pos)) != 0)
pos++;

// unique ID
unsigned long long hash; // unsigned int would suffice for grid with up to 9 columns, too
hash   = rowsLeft;
hash <<= width;
hash  |= rowA;
hash <<= width;
hash  |= rowB;
hash <<= width;
hash  |= rowC;

// about twice as fast as std::map
static std::unordered_map<unsigned long long, unsigned long long> cache;
auto i = cache.find(hash);
if (i != cache.end())
return i->second;

unsigned long long result = 0;

// shape: ##
//        #
unsigned int a = rowA;
unsigned int b = rowB;
unsigned int c = rowC;
if (rowsLeft >= 2 && pos < width - 1 &&
use(pos, a) && use(pos + 1, a) && use(pos, b))
result += search(rowsLeft, a, b, c);

// shape: ##
//         #
a = rowA; b = rowB; //c = rowC;
if (rowsLeft >= 2 && pos < width - 1 &&
use(pos, a) && use(pos + 1, a) && use(pos + 1, b))
result += search(rowsLeft, a, b, c);

// shape: #
//        ##
a = rowA; b = rowB; //c = rowC;
if (rowsLeft >= 2 && pos < width - 1 &&
use(pos, a) && use(pos, b) && use(pos + 1, b))
result += search(rowsLeft, a, b, c);

// shape:  #
//        ##
// note: this shape extends one "negative" unit to the left
a = rowA; b = rowB; //c = rowC;
if (rowsLeft >= 2 && pos > 0 && pos < width &&
use(pos, a) && use(pos - 1, b) && use(pos, b))
result += search(rowsLeft, a, b, c);

// shape:  #
//         #
//         #
a = rowA; b = rowB; //c = rowC;
if (rowsLeft >= 3 && pos < width &&
use(pos, a) && use(pos, b) && use(pos, c))
result += search(rowsLeft, a, b, c);

// shape: ###
a = rowA; b = rowB; c = rowC;
if (rowsLeft >= 1 && pos < width - 2 &&
use(pos, a) && use(pos + 1, a) && use(pos + 2, a))
result += search(rowsLeft, a, b, c);

#ifndef ORIGINAL
result %= 1000000007; // Hackerrank only
#endif

// memoize
cache[hash] = result;
return result;
}

int main()
{
std::cin >> width >> height;

// prefer fewer columns
if (width > height)
std::swap(width, height);

// let's go !
std::cout << search(height, EmptyRow, EmptyRow, EmptyRow) << std::endl;
return 0;
}


This solution contains 21 empty lines, 27 comments and 5 preprocessor commands.

# Benchmark

The correct solution to the original Project Euler problem was found in 0.07 seconds on an Intel® Core™ i7-2600K CPU @ 3.40GHz.
Peak memory usage was about 11 MByte.

(compiled for x86_64 / Linux, GCC flags: -O3 -march=native -fno-exceptions -fno-rtti -std=gnu++11 -DORIGINAL)

See here for a comparison of all solutions.

Note: interactive tests run on a weaker (=slower) computer. Some interactive tests are compiled without -DORIGINAL.

# Changelog

June 29, 2017 submitted solution

# Hackerrank

My code solves 11 out of 11 test cases (score: 100%)

# Difficulty

Project Euler ranks this problem at 70% (out of 100%).

Hackerrank describes this problem as hard.

Note:
Hackerrank has strict execution time limits (typically 2 seconds for C++ code) and often a much wider input range than the original problem.
In my opinion, Hackerrank's modified problems are usually a lot harder to solve. As a rule thumb: brute-force is rarely an option.
