# Problem 155: Counting Capacitor Circuits

An electric circuit uses exclusively identical capacitors of the same value C.
The capacitors can be connected in series or in parallel to form sub-units, which can then be connected in series or in parallel
with other capacitors or other sub-units to form larger sub-units, and so on up to a final circuit.

Using this simple procedure and up to n identical capacitors, we can make circuits having a range of different total capacitances.

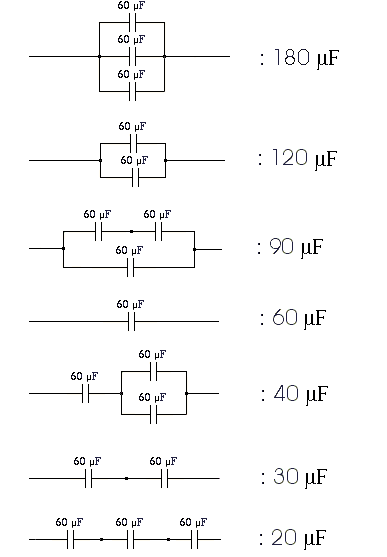

For example, using up to n=3 capacitors of 60 \mu F each, we can obtain the following 7 distinct total capacitance values:

If we denote by D(n) the number of distinct total capacitance values we can obtain when using up to n equal-valued capacitors
and the simple procedure described above, we have: D(1)=1, D(2)=3, D(3)=7 ...

Find D(18).

Reminder : When connecting capacitors C_1, C_2 etc in parallel, the total capacitance is C_T = C_1 + C_2 + ...,
whereas when connecting them in series, the overall capacitance is given by: dfrac{1}{C_T} = dfrac{1}{C_1} = dfrac{1}{C_2} + ...

# My Algorithm

Each large circuit can be subdivided into two smaller circuits that are either connected in parallel or in series.
There are sometimes multiple ways to subdivide a circuit - but all result in the same total capacitance.
The top-most example can be split into 2 plus 1 or 1 plus 2 capacitors. When connected in parallel, I always get 120 + 60 = 60 + 120 = 180.
Of course that's a very basic example because both combinations are based on parallel connections.

The idea is as follows:

• there is a single capacitor for D(1)
• to find all circuits for D(2) I have to combine all capacitors from D(a) and D(b) where a+b=2 in parallel and in series
• in general: to find all circuits for D(c) I have to combine all capacitors from D(a) and D(b) where a+b=c in parallel and in series
• if different combinations give the same total capacitance then it only has to be counted once ("each capacitance must be unique")
I was afraid of nasty rounding errors and wrote a class Fraction to be able to handle connections in series
(because of the heavy use of divisions in dfrac{1}{C_c} = dfrac{1}{C_a} = dfrac{1}{C_b}).

The numerator and/or denominator sometimes became pretty huge and after reading the problem statement multiple times
I realized that the actual rating of a single capacitor doesn't matter:
the example mentions 60 \mu F but that Farad value is just arbitrary. The number of networks of capacitors with 1 F will be the same since
I don't have to print the capacitances - only count how many different I can find.
With 60 \mu F I had tons of overflows, even with long long, but 1 F is perfectly fine with my Fraction class even when
relying on the slightly faster unsigned short (→ 20% performance boost).

## Alternative Approaches

The series can be found in oeis.org/A153588 .

## Modifications by HackerRank

My program is a little bit too slow for the last test case (probably misses the deadline just by a few milliseconds).
It's strange that even the Hackerrank author suggests pre-computing the result to match the 2 seconds time limit.

## Note

The class Fraction was added to my toolbox, too.

A significant part of my code takes care that all solutions/capacitances are unique.
The std::set container offers that "for free": yes, you don't need to write any code - unlike I did - but std::set is much slower, too.
The problem is solved roughly five times faster when #define FAST is enabled (→ std::vector instead of std::set).
It's actually pretty nice how much code is identical for both containers: aside from push_back() vs. insert() there are no additional differences.
There is also a significant memory overhead of set::set: it consumes about 200% more memory even though it only stores 50% of the values.

Even with all these optimizations: my solution is still in the top 10 of the "most expensive solutions".
And I have to admit: some parts of my code look ugly now - or better said: hardly comprehensible ...

# Interactive test

You can submit your own input to my program and it will be instantly processed at my server:

Input data (separated by spaces or newlines):

This is equivalent to
echo 3 | ./155

Output:

(please click 'Go !')

Note: the original problem's input 18 cannot be entered
because just copying results is a soft skill reserved for idiots.

(this interactive test is still under development, computations will be aborted after one second)

# My code

… was written in C++11 and can be compiled with G++, Clang++, Visual C++. You can download it, too. Or just jump to my GitHub repository.

       #include <iostream>
#include <vector>
#include <set>
#include <algorithm>

// use std::vector instead of std::set
#define FAST

// ---------- code from my toolbox ----------

// simple class to representation a fraction
// note: no checks for a zero denominator
//       signs are not normalized
struct Fraction
{
// change to long long if you need to support larger values
typedef unsigned short T;

// numerator
T num;
// denominator
T den;

Fraction(T numerator, T denominator = 1)
: num(numerator), den(denominator)
{}

Fraction operator+(const Fraction& other) const
{
// n1/d1 + n2/d2 = (n1*d2 + n2*d1) / d1*d2
return { T(num * other.den + other.num * den), T(den * other.den) };
}

// sort
bool operator< (const Fraction& other) const
{
// n1/d1 < n2/d2 => n1*d2 < n2*d2
return num * other.den <  other.num * den;
}
// compare
bool operator==(const Fraction& other) const
{
// n1/d1 < n2/d2 => n1*d2 < n2*d2
return num * other.den == other.num * den;
}

// return Fraction with swapped numerator and denominator
Fraction inverse() const
{
return { den, num };
}
};

// ---------- problem-specific code ----------

int main()
{
unsigned int limit = 18;
std::cin >> limit;

// capacitance of a single element (1 F)
Fraction Capacitance = 1;

// store all circuits
#ifdef FAST
std::vector<std::vector<Fraction>> circuits;
#else
std::vector<std::set<Fraction>>    circuits;
#endif
circuits.resize(limit + 1);

// only one basic circuit at level 1 (I use 1F instead of 60uF but the exact value is irrelevant)
circuits[1] = { Capacitance };

// find all circuits consisting of 2,3,4, ... 18 elements
for (unsigned int sizeC = 2; sizeC <= limit; sizeC++)
{
// split into "sub-circuits" A and B where size(A) <= size(B)
for (unsigned int sizeA = 1; sizeA <= sizeC / 2; sizeA++)
{
// remaining circuits
auto sizeB = sizeC - sizeA;

// create all combinations
for (auto circuitA : circuits[sizeA])
for (auto circuitB : circuits[sizeB])
{
// serial connection
// c = a + b
auto serial = circuitA + circuitB;
#ifdef FAST
circuits[sizeC].push_back(serial);
#else
circuits[sizeC].insert(serial);
#endif

// parallel connection
// 1/c = 1/a + 1/b
// invC = invA + invB where invC = 1/c and invA = 1/a and invB = 1/b
auto parallel = (circuitA.inverse() + circuitB.inverse()).inverse();
#ifdef FAST
circuits[sizeC].push_back(parallel);
#else
circuits[sizeC].insert(parallel);
#endif
}
}

#ifdef FAST
// remove duplicates
std::sort(circuits[sizeC].begin(), circuits[sizeC].end());
auto garbage = std::unique(circuits[sizeC].begin(), circuits[sizeC].end());
circuits[sizeC].erase(garbage, circuits[sizeC].end());
#endif
}

// merge all circuits
std::vector<Fraction> all;
#ifdef FAST
// little trick to keep memory usage low: move the largest vector's content instead of copying
all = std::move(circuits[limit]);
limit--;
#endif
// copy all capacitances
for (unsigned int i = 1; i <= limit; i++)
all.insert(all.end(), circuits[i].begin(), circuits[i].end());

// and remove duplicates
std::sort(all.begin(), all.end());
auto garbage = std::unique(all.begin(), all.end());
// count unique fractions
auto numUnique = std::distance(all.begin(), garbage);
std::cout << numUnique << std::endl;
return 0;
}


This solution contains 19 empty lines, 34 comments and 18 preprocessor commands.

# Benchmark

The correct solution to the original Project Euler problem was found in 2.1 seconds on an Intel® Core™ i7-2600K CPU @ 3.40GHz.
Peak memory usage was about 106 MByte.

(compiled for x86_64 / Linux, GCC flags: -O3 -march=native -fno-exceptions -fno-rtti -std=gnu++11 -DORIGINAL)

See here for a comparison of all solutions.

Note: interactive tests run on a weaker (=slower) computer. Some interactive tests are compiled without -DORIGINAL.

# Changelog

September 15, 2017 submitted solution

# Hackerrank

My code solves 17 out of 18 test cases (score: 94.12%)

I failed 0 test cases due to wrong answers and 1 because of timeouts

# Difficulty

Project Euler ranks this problem at 60% (out of 100%).

Hackerrank describes this problem as easy.
