# Problem 208: Robot Walks

A robot moves in a series of one-fifth circular arcs (72°), with a free choice of a clockwise or an anticlockwise arc for each step, but no turning on the spot.

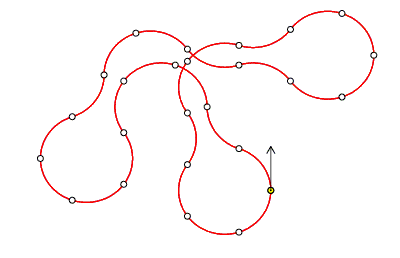

One of 70932 possible closed paths of 25 arcs starting northward is

Given that the robot starts facing North, how many journeys of 70 arcs in length can it take that return it, after the final arc, to its starting position?
(Any arc may be traversed multiple times.)

# My Algorithm

I played around with a 3rd party graphics library and tried to brute force the solution for 25 arcs:

• I set up rotation matrices
• need to adjust the allowed error to fix floating-point issues
• and had tons of other problems
Nevertheless, my program found those 70932 paths.

More interesting is that I analyzed all paths with 5,6,7,...,25 arcs (obviously you need at least 5 arcs; I didn't analyze longer paths):
• there are only solutions for 5,10,15,20 and 25 arcs, that means the path length must be a multiple of 5
• the number of arcs "leaning left" is always a multiple of 5
• the number of arcs "leaning right" is always a multiple of 5
Loosely speaking, each path consists only of full circles where the single parts are arbitrarily interleaved.
For example: 25 arcs means I have 5 full circles, some clockwise and some anti-clockwise, and these parts of the circle are connected in a "random" way.

The fascinating result of these observations: I don't need matrices at all - all I need is "counting" arcs !
• the path always starts with arc 0
• in each step I increment a counter in numVisited[currentArc]
• if the path turns left then I continue with the next arc (current arc plus 1 in modulo 5 → arc 1)
• if the path turns right then I continue with the previous arc (current arc minus 1 in modulo 5 → arc -1 → arc 4)
The same configurations of counters are repeatedly observed on different paths, so I can memoize them.
The whole state consists of these five counters plus the current arc.
I can merge these numbers into a single integer id and store it in a container cache.

Whenever I finish a path, all counters must have the same value.
If the first four value are identical then the fifth must be, too.
Instead of comparing the first four counters one-by-one I compare the first and second, the third and fourth and then the first and third.
This way I save one comparison (it's somehow like binary search):
"slow": numVisited[0] == numVisited[1] && numVisited[1] == numVisited[2] && numVisited[2] == numVisited[3] && numVisited[3] == numVisited[4]
"fast": numVisited[0] == numVisited[1] && numVisited[3] == numVisited[4] && numVisited[1] == numVisited[3]
→ actually my code does the opposite thing because it want to detect those "failed" paths.

## Note

My initial version of the algorithm stored the memoized results in a hash-map.
An std::vector is always faster at the cost of higher memory consumption, so I replaced it (see #define FAST).
I was surprised to see that the std::vector consumes actually 10% less memory while being 6 times faster.

# Interactive test

You can submit your own input to my program and it will be instantly processed at my server:

Input data (separated by spaces or newlines):

This is equivalent to
echo 25 | ./208

Output:

Note: the original problem's input 70 cannot be entered
because just copying results is a soft skill reserved for idiots.

(this interactive test is still under development, computations will be aborted after one second)

# My code

… was written in C++11 and can be compiled with G++, Clang++, Visual C++. You can download it, too. Or just jump to my GitHub repository.

       #include <iostream>
#include <vector>
#include <unordered_map>

unsigned char numVisited[5] = { 0,0,0,0,0 };
unsigned char maxPerArc = 0;

#define FAST
#ifdef  FAST
const auto Unknown = 0xFFFFFFFFFFFFFFFFull;
std::vector<unsigned long long> cache;
#else
std::unordered_map<unsigned int, unsigned long long> cache;
#endif

// count number of valid arcs
unsigned long long search(unsigned char arcsLeft = 70, unsigned char currentArc = 0)
{
// all arcs were used
if (arcsLeft == 0)
{
if (currentArc != 0)
return 0;

// expect that all arcs were visited equally often
if (numVisited[0] != numVisited[1] ||
numVisited[2] != numVisited[3] ||
numVisited[0] != numVisited[2]) // no need to check visited[4]
return 0;

return 1;
}

// create a unique key
const auto IdFactor = maxPerArc + 1;
unsigned int id = currentArc;
id *= IdFactor;
id += numVisited[0];
id *= IdFactor;
id += numVisited[1];
id *= IdFactor;
id += numVisited[2];
id *= IdFactor;
id += numVisited[3];
id *= IdFactor;
id += numVisited[4];
// memoize
#ifdef FAST
if (cache.empty())
cache.resize(5 * IdFactor * IdFactor * IdFactor * IdFactor * IdFactor, Unknown);
if (cache[id] != Unknown)
return cache[id];
#else
auto lookup = cache.find(id);
if (lookup != cache.end())
return lookup->second;
#endif

unsigned long long result = 0;

// turn left  if possible
auto turnLeft = (currentArc + 1) % 5;
if (numVisited[turnLeft]  < maxPerArc)
{
numVisited[turnLeft]++;
result += search(arcsLeft - 1, turnLeft);
numVisited[turnLeft]--;
}

// turn right if possible
auto turnRight = (currentArc + 4) % 5; // -1 mod 5 => 5-1 mod 5
if (numVisited[turnRight] < maxPerArc)
{
numVisited[turnRight]++;
result += search(arcsLeft - 1, turnRight);
numVisited[turnRight]--;
}

// save result
cache[id] = result;
return result;
}

int main()
{
unsigned int numArcs = 70;
std::cin >> numArcs;

// let's go !
maxPerArc = numArcs / 5;
std::cout << search(numArcs) << std::endl;
return 0;
}


This solution contains 12 empty lines, 10 comments and 10 preprocessor commands.

# Benchmark

The correct solution to the original Project Euler problem was found in 0.03 seconds on an Intel® Core™ i7-2600K CPU @ 3.40GHz.
Peak memory usage was about 32 MByte.

(compiled for x86_64 / Linux, GCC flags: -O3 -march=native -fno-exceptions -fno-rtti -std=gnu++11 -DORIGINAL)

See here for a comparison of all solutions.

Note: interactive tests run on a weaker (=slower) computer. Some interactive tests are compiled without -DORIGINAL.
