# Problem 412: Gnomon numbering

For integers m, n (0 <= n < m), let L(m, n) be an m * m grid with the top-right n * n grid removed.

For example, L(5, 3) looks like this:

We want to number each cell of L(m, n) with consecutive integers 1, 2, 3, ... such that the number in every cell is smaller than the number below it and to the left of it.

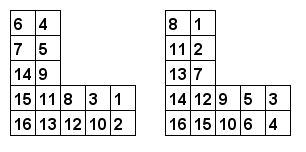

For example, here are two valid numberings of L(5, 3):

Let LC(m, n) be the number of valid numberings of L(m, n).
It can be verified that LC(3, 0) = 42, LC(5, 3) = 250250, LC(6, 3) = 406029023400 and LC(10, 5) mod 76543217 = 61251715.

Find LC(10000, 5000) mod 76543217.

# Not solved yet

My code works for the "small" example but can't find the solution to the "big" problem.

# What I've Done So Far

Okay, at the moment I have no idea how to solve that problem.

But it was fun spending a few minutes on writing a brute-force solution for grids no larger than 6x6.
By the way: bruteForce(6,3) finished after about 7.5 hours ...
The next morning I wrote slow which is based on the following observation:

• when filling the grid "in reverse order" (that means from 16 to 1), then smaller numbers are automatically stacked on larger numbers
• each column of the grid can be seen as a "skyscraper"
• there are no gaps in a skyscraper
• each skyscraper is at most as high as its left neighbor
In the end I don't have to store the single numbers in the grid (a 2D data structure).
Instead I just need to track the height of each skyscraper (a 1D data structure).
These heights are identical for many different number distributions so that I can accelerate the search by aggressive memoization.
slow(6,3) finds the correct result in less than 0.01 seconds (vs. 7.5 hours !).
Note: all results are displayed mod 76543217.

However, this improved algorithm can't solve LC(10000, 5000) in a reasonable timeframe.

# Interactive test

You can submit your own input to my program and it will be instantly processed at my server:

Input data (separated by spaces or newlines):
Note: Enter the m (grid's edge length) followed by n (the cut-out area's edge length)
Note: I didn't solve this problem yet. The output will most likely be a little bit off or time-out.

This is equivalent to
echo "10 5" | ./412

Output:

(this interactive test is still under development, computations will be aborted after one second)

# My code

… was written in C++11 and can be compiled with G++, Clang++, Visual C++. You can download it, too. Or just jump to my GitHub repository.

       #include <iostream>
#include <vector>
#include <map>

const auto MaxSize = 10; // no grids larger than 10x10 (6x6 is already super-slow in brute-force mode)
auto size   = 5;        // that's m from the problem statement
auto cutout = 3;        // that's n from the problem statement

const auto Modulo  = 76543217;

// indicates a cell that hasn't be filled yet
const unsigned int Unknown = 0;
unsigned int cells[MaxSize][MaxSize] = { Unknown };

// add "number" and all smaller numbers to "cells", return how many combinations where found
unsigned long long bruteForce(unsigned int number)
{
// successfully filled all cells ?
if (number == 0)
{
static unsigned long long progress = 0;
if (++progress % (1 << 24) == 0)
std::cout << (progress * 100.0 / 406029023400) << "%" << std::endl;
return 1;
}

unsigned long long result = 0;

// iterate over all free spots where the left and lower neighbor are bigger (or there is no neighbor => border)
for (auto y = 0; y < size; y++)
{
// avoid the cut-out area
auto maxX = size;
if (y < cutout)
maxX = size - cutout;

for (auto x = 0; x < maxX; x++)
{
// cell previously filled ?
if (cells[x][y] != Unknown)
continue;

// all bigger numbers were already processed, so there's no gap allowed on the left or bottom

// left   neighbor must exist, or there's the grid's border
if (x > 0 && cells[x-1][y] == Unknown)
continue;
// bottom neighbor must exist, or there's the grid's border
if (y < size - 1 && cells[x][y+1] == Unknown)
continue;

// okay, found an empty cell !
cells[x][y] = number;
// go deeper
result += bruteForce(number - 1);

// undo current step and keep looking for other configurations
cells[x][y] = Unknown;
}
}

return result % Modulo;
}

// my "skyscraper" algorithm
typedef std::vector<unsigned short> HeightMap;
unsigned long long slow(unsigned int number, HeightMap& height)
{
// successfully filled all cells ?
if (number == 1)
return 1;

// memoize
static std::map<HeightMap, unsigned long long> cache;
auto lookup = cache.find(height);
if (lookup != cache.end())
return lookup->second;

// find a column that isn't full and is lower than its left neighbor
unsigned long long result = 0;
for (auto i = 0; i < size; i++)
{
// maximum height
auto maxHeight = size;
if (i >= size - cutout)
maxHeight -= cutout;

if (height[i] < maxHeight)
// lower than its left neighbor ?
if (i == 0 || height[i] < height[i - 1])
{
height[i]++;
result += slow(number - 1, height);
height[i]--;
}
}

result %= Modulo;
cache[height] = result;
return result;
}

int main()
{
std::cin >> size >> cutout;
// for live tests only
if (size > MaxSize || size < cutout)
return 1;

// the highest number is always located in the lower-right corner
auto highestNumber = size * size - cutout * cutout;

// brute force
//std::cout << bruteForce(highestNumber) << std::endl;

// significantly faster, but still too slow to solve the problem (it easily solves all examples)
HeightMap height(size, 0);
std::cout << slow(highestNumber, height) << std::endl;

return 0;
}


This solution contains 22 empty lines, 23 comments and 3 preprocessor commands.
